SST021-1

LUBE CUBE

Regular price
$224.99
Sale price
$224.99
Regular price
$0.00
Sold out
First release pricing
Unit price
per

Our HVLP fogless coolant sprayer that delivers a precisely targeted spray to the cutter and work piece without finely atomizing toxic coolants - substantially reducing coolant waste, lubrication over-spray, and hazardous fog

! In 10+ Customers Carts

Mister Head
!
Dual Mister setup includes two Lube Cube misters, fed from one pressure vessel, for better coolant coverage from multiple angles
Solenoid
!
Add a solenoid to electronically trigger coolant flow (i.e. Using an M42 code), or choose a manual switch valve for simple hand-triggered on/off control.
Canister
!
Polycarbonate is clear and tough, but not suited for Isopropyl Alcohol, Kool Mist #77/#78, and other solvent-based coolants. For those, use Polypropylene
    Specifications

    - Extra high resolution knob provides fine control over coolant-to-air mixture ratio and is compatible with most coolant types and oils

    - Extremely tight coolant spread, forming a 3” diameter over 12” of distance, injects Coolant Deep Into Pockets and Holes, while also Clears Chips from Cutter and Workpiece - resulting in Higher Cutting Speeds, Increased Tool Life, and improved cut quality

    - Magnetic On/Off Base attaches onto metal surfaces at the flip of a switch, while the articulating arm and multi-position mounting points allow you to secure the LUBECUBE at the exact position and angle required for optimal processing.

    - Fully Pressurized System Delivers a reliable, uninterrupted continuous flow of coolant to the work piece. It’s instant on and off response with pressurization, and ease of adjustment, make it a real time saver

    - Masterfully CNC Machined all Metal Construction and Backed by 5 Year SST Warranty

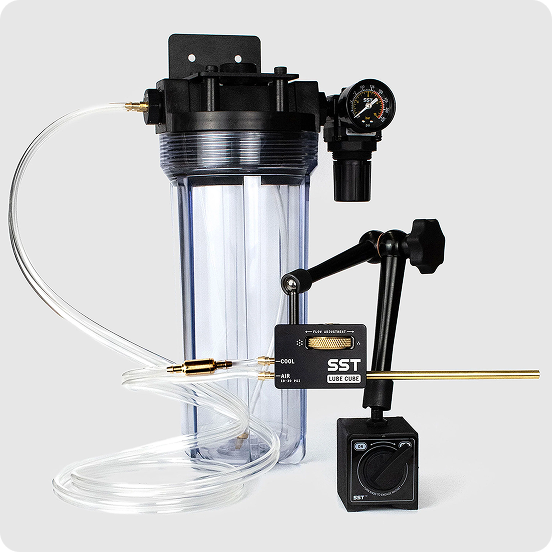

    Kit Contents

    - LUBECUBE Coolant Sprayer Block

    - Magnetic Base with Articulating Arm

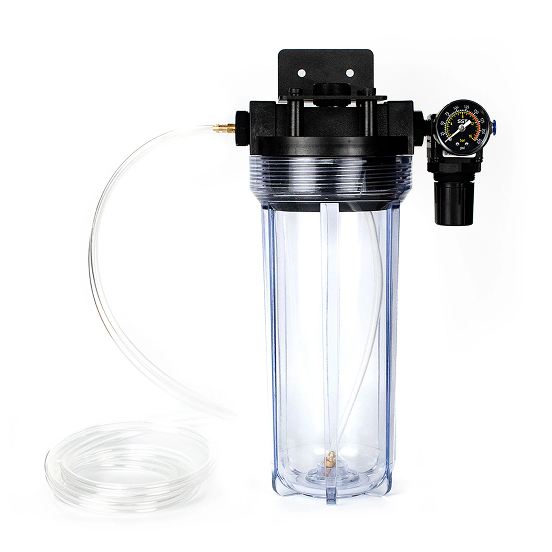

    - 2 Liter Coolant Cannister with Mounting Bracket

    - Brass Check Valve

    - Locking Air Regulator (1/4” NPT Inlet)

    - 5ft of Twin-Line Chemical & Abrasion Resistant Tubing

    - Coolant Pickup Filter

    - 6mm Push Fit Connector (for air inlet)

    Choosing a Canister Material

    We've tested dozens of coolant types, and have found that our Polycarbonate canister is NOT compatible with:

    - Isopropyl Alcohol

    - Kool Mist #77 / #78

    Please choose the polypropylene canister material (or order an additional canister bottom from our Parts page) if you anticipate using these coolants

    Product Overview

    A Little Lube Goes a Long Way

    A Little Lube Goes a Long Way

    Minimum quantity lubrication means less coolant usage and an easier cleanup.

    A 100% Complete Kit - Connect, Fill & Go

    A 100% Complete Kit - Connect, Fill & Go

    We don’t do half measures. Get everything in one box, add coolant, connect to air, and go!

    Delivered Right Where You Need It

    Delivered Right Where You Need It

    Lube Cube doesn’t atomize your coolant, so it arrive with only 3” spread over a 15” distance.

    Big Boy Tank To Fill Once A Decade

    Big Boy Tank To Fill Once A Decade

    The tank comes with 1/2 gallon capacity, ensuring you can spend your time building.

    How Other Makers Are Using It

    Don’t Just Take Our Word For It

    I don't think I could put all this together for the cost of the kit.

    Verified

    Now I gotta take my Chinese coolant out to the dumpster...

    Verified
    Section Image

    Product Specifications

    Specifications

    Tank Dimensions 7” Diameter, 14” Tall
    Coolant Capacity 0.5L
    Operating PSI/CFM 10 - 30 PSI / 0.7 - 2.0 CFM
    Nozzle 4.5” Length - Brass
    Tubing 5 ft. Twin-Line PU
    Magnet Strength Very Strong
    Mister Head
    Solenoid
    Canister

    Buy the Lube Cube

    $224.99

    SST021-1

    Customer Reviews

    Based on 18 reviews
    83%
    (15)
    0%
    (0)
    11%
    (2)
    6%
    (1)
    0%
    (0)
    c
    cool daddio
    Exceeds expectations

    Impressive quality, thoughtful design

    J
    Joe
    I really like the design for my mill.

    I really like the design for my mill. Work incredibly well.

    S
    Serhii
    Great tool!

    It`s amazing.
    This tool didn't even come close to Chinese tools.
    Advantages:
    1. Stability of flow
    2. Extremly low cutting liquid waste
    3. Good design
    4. smooth flow adjustment
    Just ordered one more.

    T
    Tom Stark
    Awesome tool!

    I have done all sorts of things to add lubricant to my work on my bridgeport. This is the best I have tried, and at a fair price

    O
    Outtahere100
    Great Product!

    Great design, quality built and great packaging. It's so nice to be able to "Buy American"!I'm a Gunsmith and I machine a lot of hard materials, running carbide inserted and solid carbide tooling in a manual mill and lathe and being able to place the right amount of coolant exactly where I need it, without creating a fog is very important to me.Thanks again for the great service and a quality product at a fair price! Now I need to take my Chinese junk coolant systems out to the dumpster.....
